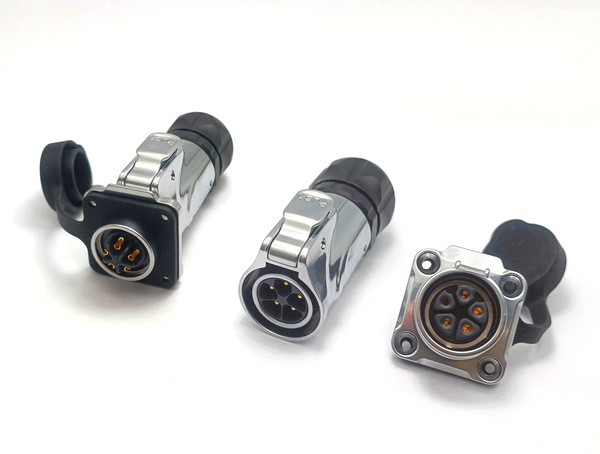

R20 Series: F/ M/ RJ45/ USB/ OPTICAL
Number of Pins selection: 2- 9P
Installation Mode: Wire to Board, Solder/ Screwless/ Screw
Contact Pin:
- Male Pin: Brass HPB59-1.
- Female Pin: Phosphor Bronze QSN4-3.
- Gold-Plated 4u".
Body shell:
- Material: Zinc Alloy
Electrical Characteristic:
- Rated Voltage: 200- 500V
- Rated Current: 5- 20A
Mating Life-cycle: 1700 /Times
TIA/EIA 568, MIL, IEC, CNS Standard
Connector selection: Power transmission/ Ethernet/ USB/ Optical Fiber...etc
